THK SHW17CAM block guide can be customized
Major applications: Printed circuit board drilling machine/semiconductor manufacturing machine/electric discharge machine/insertion machine / optical stage
Description
Models SHW17CAM THK block

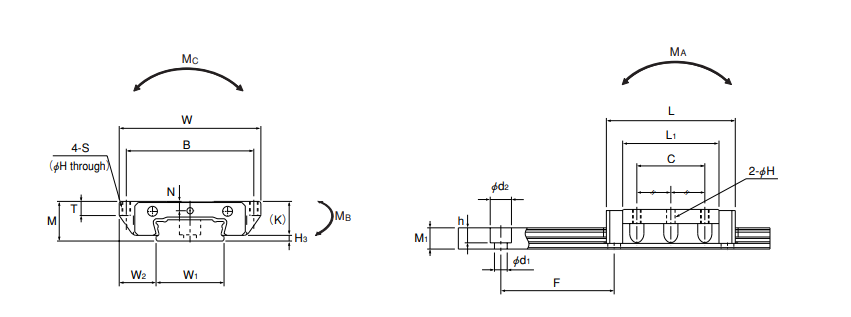

| Model No. | Outer dimensions | LM block dimensions | Mass | |||||||||||
| HeightM | WidthW | LengthL | B | c | s | H | L1 | T | K | N | H3 | LM block | LM rai | |
| THK SHW12CAM | 12 | 40 | 37 | 35 | 18 | M3 | 2.5 | 27 | 4 | 10 | 2.8 | 2 | 0.05 | 0.8 |
| THK SHW14CAM | 14 | 50 | 45.5 | 45 | 24 | M3 | 2.5 | 34 | 5 | 12 | 3.3 | 2 | 0.1 | 1.23 |
| THK SHW17CAM | 17 | 60 | 51 | 53 | 26 | M4 | 3.3 | 38 | 6 | 14.5 | 4 | 2.5 | 0.15 | 1.9 |
| THK SHW 21CA | 21 | 68 | 59 | 60 | 29 | M5 | 4.4 | 43.6 | 8 | 17.7 | 5 | 3.3 | 0.24 | 2.9 |
| THK SHW 27CA | 27 | 80 | 72.8 | 70 | 40 | M6 | 5.3 | 56.6 | 10 | 23.5 | 6 | 3.5 | 0.47 | 4.5 |
| THK SHW35CA | 35 | 120 | 107 | 107 | 60 | M8 | 6.8 | 83 | 14 | 31 | 7.6 | 4 | 1.4 | 9.6 |
| THK SHW50CA | 50 | 162 | 141 | 144 | 80 | M10 | 8.6 | 107 | 18 | 46 | 14 | 4 | 3.7 | 15 |
As a professional THK Linear Motion BLOCK exporter and authorized THK® distributor, WS Bearing stocks thousands kindsof THK Linear Motion BLOCK for sale，We can THK guide rail customization export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of THK products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now
