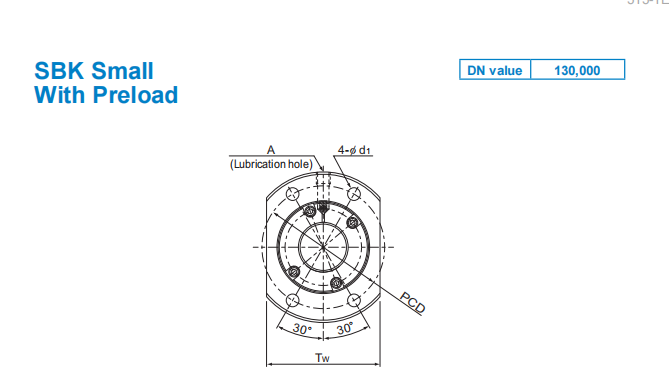

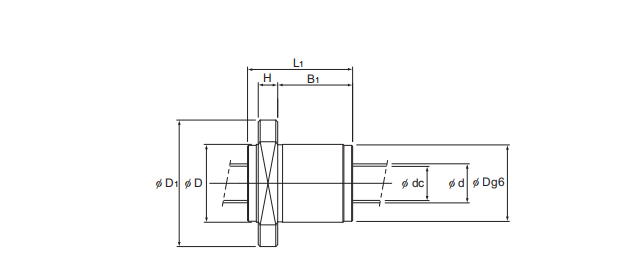

THK SBK 2010-3.6 Ball Screw High Speed Model SBK
THK SBK 2010-3.6 Ball Screw
| Model No. | Screw shaft outer diameter | Lead Ph | Ball center-to-center diameter | Thread minor diameter | Nut mass | Shaft mass | Permissible rotational speed |
| d (mm) | (mm) | dp (mm) | dc (mm) | (kg) | (kg/m) | (min⁻¹) | |
| SBK 1520-3.6 | 15 | 20 | 15.75 | 12.2 | 0.41 | 1.27 | 5000 |
| SBK 1616-3.6 | 16 | 16 | 16.65 | 13.5 | 0.25 | 1.46 | 5000 |
| SBK 2010-5.6 | 20 | 10 | 20.75 | 17.2 | 0.37 | 2.18 | 5000 |
| SBK 2020-3.6 | 20 | 20 | 20.75 | 17.2 | 0.43 | 2.32 | 5000 |
| SBK 2030-3.6 | 20 | 30 | 20.75 | 17.2 | 0.55 | 2.36 | 5000 |
| SBK 2520-3.6 | 25 | 20 | 26 | 21.5 | 0.59 | 3.58 | 5000 |
| SBK 2525-3.6 | 25 | 25 | 26 | 21.5 | 0.69 | 3.63 | 5000 |
| SBK 3220-5.6 | 32 | 20 | 33.25 | 27.9 | 1.23 | 5.82 | 3900 |
| SBK 3232-5.6 | 32 | 32 | 33.25 | 27.9 | 1.7 | 5.99 | 3900 |
WS are professional THK ball screw exporter and authorized THK® distributor, WS Bearing stocks thousands kinds of THK BALL SCREW for sale，We can export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of THK products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now.
