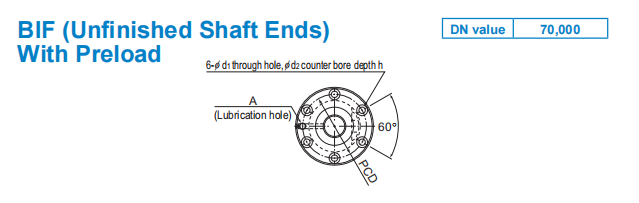

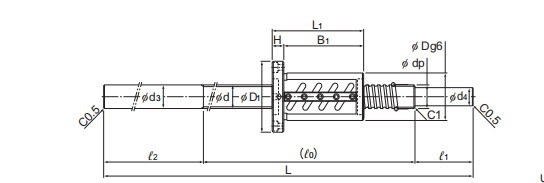

THK BIF1605-5 Ball Screw High Speed Model BIF-V
THK BIF1605-5 Ball Screw
| Model No. | Screw shaft outer diameter d (mm) | Lead Ph (mm) | Ball center-to-center diameter dp (mm) | Thread minor diameter dc (mm) | Nut mass (kg) | Shaft mass (kg/m) | Permissible rotational speed (min⁻¹) |
| BIF 1605-5 | 16 | 5 | 16.75 | 13.2 | 0.56 | 0.92 / 1.25 | 4170 |
| BIF 1810-3 | 18 | 10 | 18.8 | 15.5 | 0.75 | 1.62 | 3720 |
| BIF 2005-5 | 20 | 5 | 20.75 | 17.2 | 0.57 | 1.65 | 3370 |
| BIF 2505-5 | 25 | 5 | 25.75 | 22.2 | 0.75 | 2.84 | 2710 |
WS are professional THK ball screw exporter and authorized THK® distributor, WS Bearing stocks thousands kinds of THK BALL SCREW for sale，We can export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of THK products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now.
