THK BIF1604V-5 Ball Screw High Speed Model SBKN
THK BIF1604V-5 Ball Screw

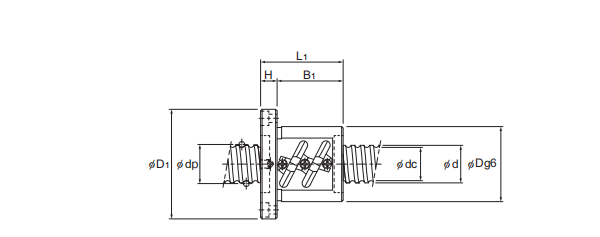

| Model No. | Screw shaft outer diameter d (mm) | Lead Ph (mm) | Ball center-to-center dp (mm) | Thread minor diameter dc (mm) | Nut mass (kg) | Shaft mass (kg/m) | Permissible rotational speed (min⁻¹) |
| BIF 1604V-5 | 16 | 4 | 16.5 | 13.8 | 0.42 | 1.42 | 5000 |
| BIF 1605V-5 | 16 | 5 | 16.75 | 13.2 | 0.56 | 1.37 | 5000 |
| BIF 2004V-5 | 20 | 4 | 20.5 | 17.8 | 0.43 | 2.22 | 4870 |
| BIF 2004V-10 | 20 | 4 | 20.5 | 17.8 | 0.55 | 2.22 | 4870 |
| BIF 2005V-5 | 20 | 5 | 20.75 | 17.2 | 0.57 | 2.19 | 4810 |
| BIF 2005V-10 | 20 | 5 | 20.75 | 17.2 | 0.79 | 2.19 | 4810 |
| BIF 2010V-5 | 20 | 10 | 20.75 | 17.2 | 1.06 | 2.46 | 5000 |
| BIF 2504V-5 | 25 | 4 | 25.5 | 22.8 | 0.55 | 3.6 | 3920 |
| BIF 2504V-10 | 25 | 4 | 25.5 | 22.8 | 0.66 | 3.6 | 3920 |
| BIF 2505V-5 | 25 | 5 | 25.75 | 22.2 | 0.75 | 3.52 | 3880 |
| BIF 2505V-10 | 25 | 5 | 25.75 | 22.2 | 0.96 | 3.52 | 3880 |
| BIF 2506V-5 | 25 | 6 | 26 | 21.4 | 0.9 | 3.43 | 3840 |
| BIF 2506V-10 | 25 | 6 | 26 | 21.4 | 1.22 | 3.43 | 3840 |
WS are professional THK ball screw exporter and authorized THK® distributor, WS Bearing stocks thousands kinds of THK BALL SCREW for sale，We can export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of THK products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now.
